Manufacturing Techniques for High-Precision Micro Prisms

Did you know that some smartphone screens rely on prisms so tiny they adjust individual pixels? I have observed firsthand a growing need for these minuscule components. The trick is perfecting their production. These extremely small optical elements, occasionally tinier than a grain of rice, are essential for technologies ranging from sophisticated medical imaging to spacecraft navigation. Tolerances can dip below one micron; a single mistake can ruin an entire batch. I will discuss the main methods for creating these amazing micro prisms, highlighting the challenges and clever solutions in this specialized area.

Before I get into micro prism manufacturing, I want to explain what they are and why they matter. These are small, precisely made pieces of transparent materials like glass, crystal or polymer. They manipulate light by bending, reflecting or dispersing it. Their small size and extreme precision make them vital in applications needing space efficiency and optimal optical performance.

• Medical Imaging: Micro prisms significantly sharpen image clarity and resolution in endoscopes, microscopes and other medical instruments. I assisted in the development of a minimally invasive surgical tool that uses micro prisms for a high resolution view, greatly improving surgery results.
• Aerospace Navigation: Micro prisms are key in guidance systems, accurately directing light beams and managing optical pathways for exact navigation and accurate targeting. I consulted for a satellite company where micro prism alignment was critical for the communication array.
• Consumer Electronics: Micro prisms increase display brightness, sharpen image quality and enable smaller optical systems in smartphones and augmented reality headsets. As electronics get smaller, the need for these components will increase.
• Telecommunications: Micro prisms speed up data transmission through optical switching, signal routing and wavelength division multiplexing, significantly improving system performance.

The push for smaller, lighter and more powerful optical systems drives the rising need for micro prisms. The problem is making these components to meet strict precision and consistency requirements. It is a major undertaking.

Grinding and polishing have been used for prisms of different sizes for a long time. Scaling these down to the micro scale presents unique difficulties. While these methods can create smooth surfaces, they often struggle to meet tight dimensional specifications and create complex shapes. I have seen this personally.

Traditional Techniques

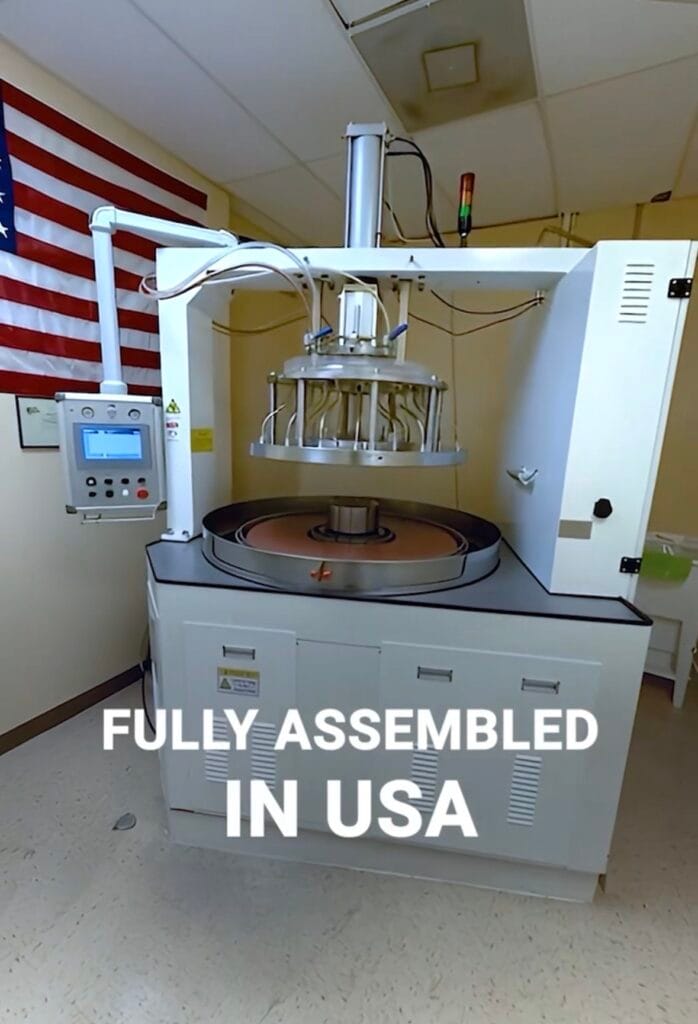

Grinding and Polishing

Grinding uses abrasive compounds to remove material, while polishing uses finer substances for a smooth surface. Prism manufacturing often includes manual steps or computer controlled machinery. When applying these methods to micro prisms, I found it difficult to achieve the necessary accuracy and the process was slow. There had to be a better solution.

Problems:

• Dimensional Control: It is difficult to maintain strict dimensional requirements, often within micrometers, due to limits in grinding and polishing.
• Edge Chipping: Micro prisms can experience edge chipping during grinding and polishing, which degrades their optical characteristics.
• Surface Quality: A defect free, smooth surface is crucial for limiting light scattering and maximizing transmission efficiency.
• Automation: Automating grinding and polishing for micro prisms is complex because of their small size and fragility.

Dicing

Dicing involves cutting individual micro prisms from a larger substrate using a diamond saw or laser cutter. While relatively fast, it introduces the risk of chipping and cracking.

Problems:

• Chipping and Cracking: Dicing often causes chipping and cracking along the edges, especially with brittle materials like glass.
• Kerf Width: The cut width limits the minimum achievable size of the micro prisms.
• Material Removal: Dicing results in material loss, which is crucial when working with rare or high value materials.

To get around the shortcomings of traditional approaches, manufacturers and researchers have developed advanced techniques for micro prism manufacturing. These methods offer better precision, enhanced repeatability and the capability to generate intricate shapes.

Advanced Techniques

Lithography

Lithography is a microfabrication process that creates patterns on a surface using light or radiation. It is widely used in the semiconductor industry and has been adapted to produce micro prisms. Lithography is great at generating intricate patterns with submicrometer precision. I once used lithography to fabricate micro prisms with different angles and incorporated them into a miniature spectrometer. The device worked perfectly.

Process:

1. Substrate Preparation: A substrate, typically glass or silicon, is coated with a photosensitive compound called photoresist.
2. Masking: A mask showing the desired pattern is precisely positioned over the photoresist layer.
3. Exposure: The photoresist is exposed to ultraviolet (UV) light or radiation through the mask, hardening the exposed pattern.
4. Development: The exposed photoresist is developed, selectively removing either the exposed or unexposed areas, depending on the photoresist type.
5. Etching: The exposed regions of the substrate are selectively etched away to transfer the desired pattern.
6. Photoresist Removal: The remaining photoresist is stripped away, leaving the micro prism structure.

Benefits:

• High Resolution: Lithography provides submicrometer resolution, enabling the fabrication of incredibly small and detailed micro prisms.
• Pattern Complexity: Lithography offers excellent versatility in creating complex shapes and patterns.
• Mass Production: Lithography provides the capacity for scaling up production volumes, making it suitable for mass manufacturing.

Drawbacks:

• Cost: Lithography equipment is expensive, which is a barrier to entry for small scale production operations.
• Material Limits: Lithography often has limits regarding compatible materials; silicon and glass are common choices.
• Multi Step Process: Lithography requires a series of sequential steps, which consumes time and resources.

Etching Techniques

Etching is essential for micro prism manufacturing. It selectively removes material from a substrate to yield the intended geometry. Two main etching methods exist: wet etching and dry etching. Each method has different characteristics.

Wet Etching

Wet etching uses chemical solutions to dissolve and remove material from the substrate. While relatively simple and low cost, controlling the etching rate and maintaining uniformity can be difficult. I once observed inconsistencies in micro prism dimensions caused by variations in the etching rate across the substrate.

Benefits:

• Simplicity: Wet etching is simple and easy to implement.
• Low Cost: The chemicals and equipment used in wet etching translate to relatively low costs.
• High Throughput: Wet etching can process large quantities of substrates at the same time.

Drawbacks:

• Isotropic Etching: Wet etching frequently etches equally in all directions, complicating the creation of sharply defined features.
• Etching Rate Control: Maintaining consistent control over the etching rate and uniformity can be problematic.
• Chemical Handling: Wet etching uses potentially hazardous chemicals, mandating strict protocols for handling and disposal.

Dry Etching

Dry etching, also known as plasma etching, uses ionized gases (plasma) to remove material from a substrate. This technique affords better control over the etching process and facilitates anisotropic etching, where material removal occurs mainly in one direction. This is advantageous for generating high aspect ratio structures, such as deep, narrow micro prisms. I am convinced that dry etching offers a better solution for manufacturing micro prisms characterized by complex shapes and demanding specifications.

Types of Dry Etching:

• Reactive Ion Etching (RIE): RIE uses both chemical reactions and physical bombardment to selectively remove material from the substrate.
• Deep Reactive Ion Etching (DRIE): DRIE specializes in the creation of deep, high aspect ratio structures.
• Inductively Coupled Plasma (ICP) Etching: ICP etching utilizes high density plasma to achieve elevated etching rates and uniformity.

Benefits:

• Anisotropic Etching: Dry etching generates anisotropic etching profiles, which is advantageous when fabricating sharp, well defined features.
• Etching Rate Control: Dry etching enables better control over the etching rate and uniformity compared to wet etching.
• Cleanliness: Dry etching surpasses wet etching regarding cleanliness, avoiding the use of liquid chemicals.

Drawbacks:

• Cost: Dry etching equipment can be costly, acting as a constraint.
• Complexity: Dry etching is more intricate than wet etching, demanding specialized equipment and expertise.
• Material Limits: Dry etching does not interact well with every material; compatibility varies.

Micro Molding

Micro molding replicates microstructures by injecting a molten material into a mold cavity. It is great for the mass production of micro prisms from polymers. I have successfully employed micro molding to fabricate arrays of micro prisms intended for light guiding applications. The results were impressive.

Process:

1. Mold Creation: A mold is fabricated, mirroring the desired micro prism geometry and using lithography, etching or other microfabrication techniques.
2. Material Injection: A molten polymer is injected into the mold under high pressure, filling the mold entirely.
3. Cooling and Solidification: The polymer cools and solidifies, taking the shape of the mold cavity.
4. Demolding: The micro prism is extracted from the mold.

Benefits:

• Mass Production: Micro molding is scalable for high volume manufacturing.
• Low Cost: The per unit cost is low, particularly for large production runs.
• Material Versatility: Micro molding is compatible with many polymers.

Drawbacks:

• Mold Cost: Creating the mold can be expensive, especially for intricate shapes.
• Material Limits: Micro molding commonly involves polymers, which might not suit every application.
• Dimensional Accuracy: Achieving tight dimensional accuracy can present difficulties, notably with very small micro prisms.

Laser Micromachining

Laser micromachining uses a focused laser beam to selectively remove material from a substrate. This technique enables the creation of micro prisms characterized by high precision and intricate geometries. I have used laser micromachining to prototype micro prisms that have unique shapes and features. It is incredibly versatile.

Types of Laser Micromachining:

• Laser Ablation: Laser ablation vaporizes material from the substrate using a high intensity laser beam.
• Laser Induced Forward Transfer (LIFT): LIFT transfers material from a donor substrate to a receiver substrate through the use of a laser beam.
• Femtosecond Laser Micromachining: Femtosecond laser micromachining minimizes heat affected zones and enhances precision, using ultrashort laser pulses.

Benefits:

• High Precision: Laser micromachining yields high precision and resolution.
• Material Versatility: Laser micromachining works well with many materials. Metals, ceramics and polymers can all be machined.
• Complex Geometries: Laser micromachining facilitates the creation of complex geometries and patterns.

Drawbacks:

• Cost: Laser micromachining equipment can represent a substantial investment.
• Throughput: Laser micromachining can be slow, especially when machining large areas or deep structures.
• Heat Affected Zone: Laser micromachining can generate a heat affected zone adjacent to the machined region, which can alter the properties of the material.

Focused Ion Beam (FIB) Milling

FIB milling selectively removes material from a substrate using a focused beam of ions. This technique offers remarkably high precision and is frequently employed to create micro prisms containing extremely small features. It can also effect localized modifications to existing structures. I have used FIB milling to generate nanoscale features on micro prism surfaces to enhance their optical characteristics. The precision is unmatched.

Process:

1. Ion Beam Generation: An ion beam, typically composed of gallium ions, is generated and directed onto the substrate.
2. Material Removal: The ion beam sputters away material from the substrate, producing the desired geometry.
3. Imaging: The FIB system generates images of the substrate, enabling accurate control during the milling operation.

Benefits:

• Extremely High Precision: FIB milling attains remarkably high precision and resolution.
• Material Versatility: FIB milling exhibits compatibility with many materials.
• Localized Modification: FIB milling enables localized modifications to existing structures.

Drawbacks:

• Cost: FIB milling equipment is extremely expensive.
• Throughput: FIB milling is a slow process.
• Material Damage: FIB milling presents the possibility of damaging the material being milled.

Materials

The material selection significantly influences the performance of micro prisms. Materials must exhibit high transparency at the intended wavelengths. They should also demonstrate mechanical and chemical stability. These are some frequent choices:

• Optical Glass: Optical glass finds frequent use in micro prisms, offering high transparency, good mechanical properties and low cost.
• Crystalline Materials: Materials such as sapphire, calcium fluoride and lithium niobate provide excellent optical characteristics and are often chosen for demanding applications.
• Polymers: Polymers such as PMMA (acrylic) and polycarbonate offer lightweight properties and ease of molding, finding utility in low cost applications.

Selecting the proper material depends on the intended function of the micro prism, including operating wavelength, temperature range and mechanical stress factors.

The Future

Progress continues in micro prism manufacturing. Several challenges remain. Current investigations emphasize achieving higher precision, lowering manufacturing expenses and innovating novel materials. One major hurdle involves integrating micro prisms into complex optical systems, calling for precise alignment and bonding methods in addition to a comprehensive grasp of the optical properties exhibited by the constituent materials.

Future directions in micro prism manufacturing include:

• 3D Printing: Additive manufacturing shows promise as a technique for fabricating micro prisms characterized by complex shapes. Although still new, 3D printing enables rapid prototyping and customized manufacturing solutions.
• Self Assembly: Self assembly entails designing micro prisms engineered to automatically assemble into the required configurations, potentially dramatically reducing manufacturing costs and improving scalability.
• Metamaterials: Metamaterials represent artificially engineered substances that possess properties not found in naturally occurring materials. Integrating metamaterials into micro prisms could lead to the creation of optical devices exhibiting unmatched performance.

Quality Control

Quality control is essential in micro prism manufacturing, ensuring that components conform to stringent specifications. Sophisticated metrology techniques quantify the dimensions, angles and surface quality of micro prisms. These are several common techniques:

• Optical Microscopy: Optical microscopy facilitates the inspection of surface quality and the identification of defects.
• Scanning Electron Microscopy (SEM): SEM generates high resolution images of micro prisms, facilitating detailed examination of their structure.
• Atomic Force Microscopy (AFM): AFM measures the surface roughness and topography of micro prisms at nanometer resolution.
• Interferometry: Interferometry precisely measures the angles and flatness of micro prisms.

These metrology techniques are essential for verifying that micro prisms meet the demanding requirements of their intended applications.

All in all, manufacturing high precision micro prisms constitutes a multifaceted and demanding field, requiring a fusion of advanced techniques, materials science and metrology expertise. The need for smaller, lighter and more capable optical systems will grow, so micro prisms will become more important. Manufacturers can select the best approach for their specific application by fully understanding the different manufacturing techniques, their capabilities and their limits. They can then continue to push the boundaries of what is technologically achievable. The future is bright.
